Air-Cooled – Force: 1kN ~ 15kN

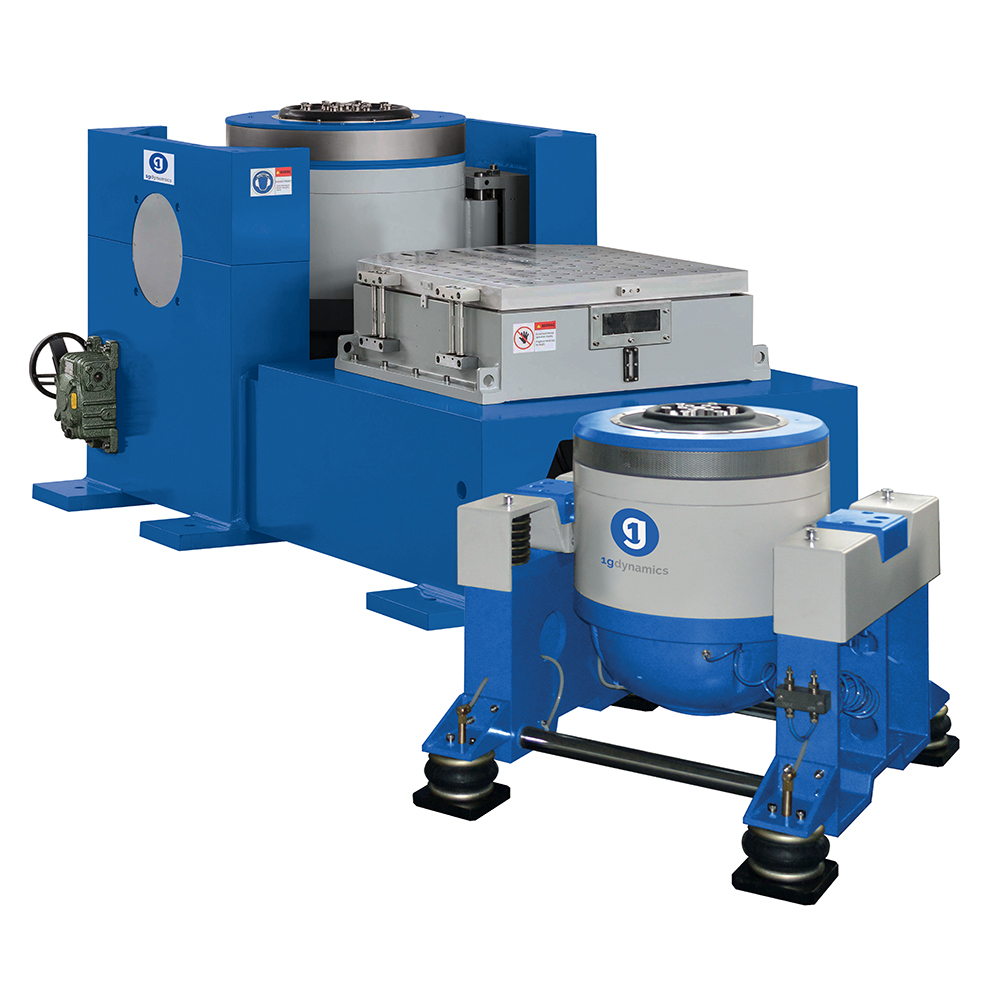

1g Dynamics D10 Series are air-cooled vibration testing systems ideally suited to testing small to medium sized components and assemblies. Each system includes the vibration generator, class E switching power amplifier, cooling extractor fan, cables and hose.
- Up to 15 kN Sine force
- Payload capability up to 300 kg
- Working frequency up to 5000 Hz
- Pneumatic payload support system
- Rugged air-isolated trunnion
Available options:
- Automatic armature centering
- Wide-range of mono-base slip tables
- Air-isolation feet, pads or mounts
- Motorised gearbox for vibrator rotation
- Thermal barriers for use with climatic chambers
- Cast and fabricated head expanders & fixtures
Vibration System Performance | |
---|---|
Sine Force Peak kN (lbf) | 1.0 (220) |
Random Force rms kN (lbf) | 1.0 (220) |
Shock Force 6ms kN (lbf) | 2.0 (440) |
Usable Frequency Range Hz | dc -4500 |
Continuous Displacement mm (in) | 25 (1.0) |
Max Travel mm (in) | 28 (1.1) |
Max Velocity Sine m/s (in/s) | 2.0 (78.7) |
Max Acc. Sine m/s2 (g pk) | 490 (50) |
Max Acc. Random m/s2 (g rms) | 340 (35) |
Max Acc. Shock m/s2 pk (g rms) | |
Vibration Generator Data | D10-100 |
Armature Mass kg (lb) | 2.0 (4.4) |
Armature Diameter mm (in) | 110 (4.4) |
Armature Resonance Hz ±5% | 3700 |
Cross-axial Moment N x m | 196 |
Max Static Payload kg (lb) | 70 (154) |
Stray Flux Density mT (gauss) | <1 (<10) |
Standard Insert Pattern | see diagram |
Dimensions L x W x H | 600 x 570 x 530 |
Total Mass (unpacked) kg (lb) | 410 (2500) |
Power Amplifier Data | |
Power Modules | 1 |
kVA Rating | 6 |
I rms Output (A rms) | 50 |
I Output (A pk) | 150 |
Air Flow m3/min (cfm) | 3.4 (120) |
Heat rejected (full power) KBTU/hr | KBTU/hr 2.75 |
Dimensions L x W x H | 550 x 850 x 1150 |
Total Mass (unpacked) kg (lb) | 230 (500) |
Cooling Fan Data | |
Air Flow m3/min (cfm) | 4 (140) |
Pressure Pa (psi) | -2100 (0.3) |
Dimensions L x W x H | 760 x 600 x 1250 |
Total Mass (unpacked) kg (lb) | 150 (330) |
Environmental Data | |
Power Requirement kVA | 4.5 |
Power Requirement Cooling Fan kW | 0.75 |
Input Voltage Supply 3-phase | - 220/380, 230/400, 240/416, 460 Delta, 277/480V AC |
Input Frequency Hz | 47/63 |
Compressed Air Supply Mpa (psi) | 0.7 (100) |
Working Temperature degrees C | 0 - 40 |
Humidity %RH, non condensing | 0 - 95 |
